Schneider

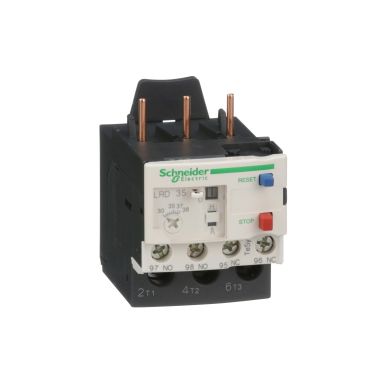

Schneider TeSys LRD - thermal overload relays - 30...38 A - class 10A - LRD35

Out Of Stock
LRD35
Notify me when the product is back in stock
Harga Spesial Rp562.115 Harga Reguler Rp906.637
Tambahkan ke Daftar Keinginan

Copied to Clipboard

main product photo
Deskripsi Produk

Deskripsi Produk

TeSys LRD thermal overload relay, 38A/690V, thermal setting range 30-38A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V.

Differential device with phase failure and load unbalance detection.

It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling.

Settings are protected by a transparent cover lockable by sealing.

Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D32-D38.

Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately).

Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Spesifikasi

Informasi lebih lanjut
RangeTeSys Deca
Product/Component TypeRelay Beban Lebih Termal
