Schneider

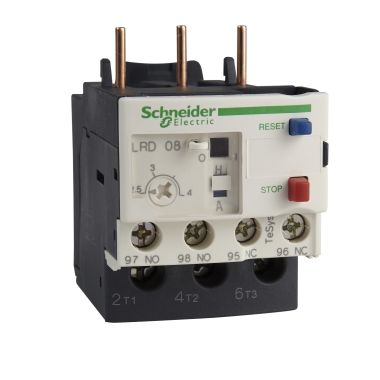

Schneider TeSys LRD - thermal overload relays - 2.5...4 A - class 10A - LRD08

Ready Stock
LRD08
Harga Spesial Rp366.473 Harga Reguler Rp591.086
Tambahkan ke Daftar Keinginan

Copied to Clipboard

main product photo
Deskripsi Produk

Deskripsi Produk

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW@400V.

Differential device with phase failure and load unbalance detection.

It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling.

Settings are protected by a transparent cover lockable by sealing.

Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38.

Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately).

Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Spesifikasi

Informasi lebih lanjut
RangeTeSys Deca
Product/Component TypeRelay Beban Lebih Termal
