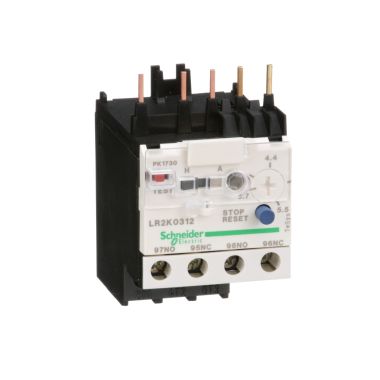

Schneider TeSys K - differential thermal overload relays - 3.7...5.5 A - class 10A - LR2K0312

Ready Stock
Harga Spesial Rp413.608 Harga Reguler Rp667.110
Deskripsi Produk

Deskripsi Produk

TeSys LRK thermal overload relay, 5.5A/690V, thermal setting range 3.7-5.5A, tripping class 10A, for protection of 3-phase motors 2.2kW@400V.

Differential device with phase failure and load unbalance detection.

It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling.

Settings are protected by a transparent cover lockable by sealing.

Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16.

Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately).

Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).


Informasi lebih lanjut
RangeTeSys K
Product/Component TypeRelay Beban Lebih Termal
