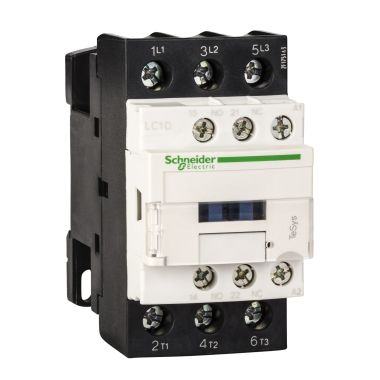

Schneider Kontaktor TeSys D - 3P, 25A, 220V, AC coil, 3NO, AC-3 -<=440V - LC1D25M7

Schneider

Schneider Kontaktor TeSys D - 3P, 25A, 220V, AC coil, 3NO, AC-3 -<=440V - LC1D25M7

Name: Schneider Kontaktor TeSys D - 3P, 25A, 220V, AC coil, 3NO, AC-3 -
Brand: Schneider
Price: 949883 IDR
Availability: InStock

Indent

LC1D25M7

Harga Spesial Rp512.937 Harga Reguler Rp949.883

Lewati ke akhir galeri foto

Lewati ke awal galeri foto

Deskripsi Produk

TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V).

It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.

For operating rates until 3600 cycles/hour and environments until 60Â°C, it procures high reliability and durability.

Compact (45mm width), DIN-rail mounting or screw fixing.

Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Spesifikasi

Informasi lebih lanjut
Range	TeSys Deca
Product/Component Type	Kontaktor
Poles description	3P
Pole contact composition	3 NO
[Uc] control circuit voltage	220 V AC 50/60 Hz
[Ie] rated operational current	25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
