Schneider

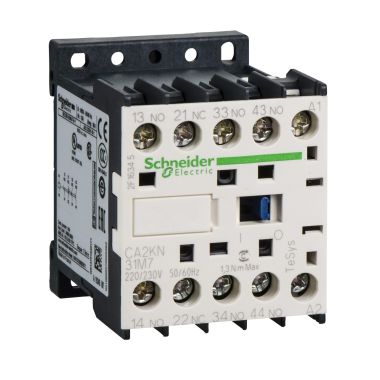

Schneider TeSys K control relay - 3NO+1NC - <= 690V - 220...230V - AC coil - CA2KN31M7

Ready Stock
CA2KN31M7
Harga Spesial Rp202.331 Harga Reguler Rp326.340
Deskripsi Produk

Deskripsi Produk

TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13.

It provides a 220-230V 50/60Hz AC control circuit, connection by screw clamp terminals.

For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability.

Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw.

Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Spesifikasi

Informasi lebih lanjut
RangeTeSys K
Product/Component TypeRelay Kontrol
Rated Operational Voltage<= 690 V <= 400 Hz
Control Circuit Voltage220…2300 V AC 50/60 Hz
