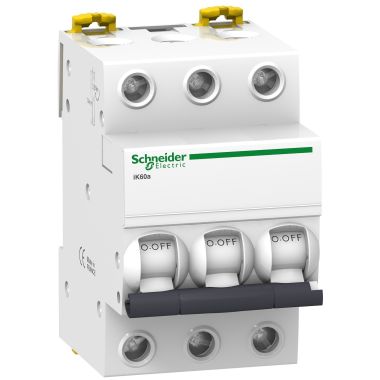

Schneider MCB Acti 9 iK60a - 3P - 16A - C curve - miniature circuit breaker - A9K14316

Ready Stock
Harga Spesial Rp280.553 Harga Reguler Rp561.105
Deskripsi Produk

Deskripsi Produk

This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB).

It is a 3P circuit breaker with 3 protected poles and 16A In rated current and C tripping curve.

The rated short circuit breaking capacity goes up to 4500A at 230VAC conforming to EN/IEC 60898-1 standard and at conforming to standard.

This product is compliant with EN/IEC 60898-1 standard.

This miniature circuit breaker protects circuit against short circuit and overload current.

It has a double clip for dismounting with comb busbar in place.

It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.

The Ui rated insulation voltage is 440VAC.

The Uimp rated impulse withstand voltage is 4kV.

The operating frequency is 50Hz or 60Hz.

It can be mounted on DIN rail for modular installation.

Its width is 6 pitches of 9mm.

The product colour is white (RAL9003).

The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm.

The weight is 300g.

It has an IP20 degree of protection.

It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard.

The operating temperature is -25°C to 60°C.

The storage temperature is -40°C to 85°C.


Informasi lebih lanjut
RangeActi 9
Product/Component TypeMiniature Circuit Breaker
Breaking Capacity4500 A
Poles description3P
[In] rated current16 A
Curve codeC
