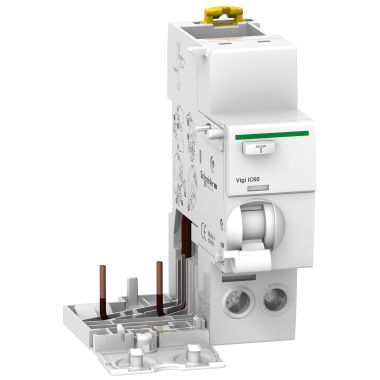

Schneider Acti 9 Vigi iC60 - 2P - 25A - 30mA - AC type - earth leakage add-on block - A9V41225

Harga Spesial Rp715.673 Harga Reguler Rp1.431.345
Deskripsi Produk

Deskripsi Produk

This Acti9 Vigi iC60 is a modular add-on residual current devices.

It is a 2P, rated current is 63A, operating voltage is 230VAC to 240VAC according to IEC 61009-1.

The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology.

This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.

A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face.

It can be combined with iC60 or Acti 9 Reflex iC60, to provide protection of persons and protection of installations.

This product is compliant with IEC 61009-1 and EN 61009-1 standard.

The Ue rated operational voltage is 230VAC to 240VAC.

The Ui rated insulation voltage is 500VAC.

The Uimp rated impulse withstand voltage is 6kV.

The pollution degree is 3.

It can be mounted on DIN rail.

The width in 9mm pitches is 3.

The dimensions are (W) 63mm x (H) 91mm x (D) 73.5mm.

The weight is 0.165kg.

The degree of protection is IP20 and IP40 in an enclosure.

The operating temperature -5°C to +60°C.

The storage temperature is -40°C to +85°C.


Informasi lebih lanjut
RangeModul Vigi
Product/Component TypePengaman Arus Bocor
Earth-leakage Sensitivity30 mA
