Schneider
Schneider Acti 9 iPC DIN socket - 2P+E - 16A - 250VAC - KEMA VDE 0620 - german std - A9A15310
Ready Stock
A9A15310
Harga Spesial Rp181.785 Harga Reguler Rp363.569
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This Acti9 iPC product is a modular power socket allow low-voltage device to be connected to the electrical network.
It is a standard 16A 2P+E power socket with protective cover on poles.
It is compliant with KEMA VDE 0620 german standard.
The tightening torque of connection is 1.2N.m for PZ2 screwdriver type.
The connection allows rigid copper cables between 1 to 10mm².
The connection allows flexible or with ferrule copper cables between 1 to 6mm².
The width in 9mm pitches is 5.
The product color is white (RAL9003).
The dimensions are (W) 45mm x (H) 81mm x (D) 55mm.
The weight is 100g.
The degree of protection is IP20 at terminals and IP40 in enclosure.
The operating temperature is -25°C to +70°C.
The storage temperature is -40°C to +80°C.
It complies with VDE 0620 standard, UNE_20315-1-1 and NEN 1020.
Spesifikasi
| Range | Command Control |
|---|---|
| Product/Component Type | Miniature Circuit Breaker |
Produk Terkait
- Tambahkan ke Daftar Keinginan
Schneider Cable end insulated, 0,75mm, medium size, blue, 10 bags, NF - DZ5CE007DZ5CE007Harga Spesial Rp2.268 Harga Reguler Rp3.659Indent - Tambahkan ke Daftar Keinginan
Schneider Cable end insulated, 1mm, medium size, red, 10 bags, NF - DZ5CE010DZ5CE010Harga Spesial Rp2.268 Harga Reguler Rp3.659Out Of Stock - Tambahkan ke Daftar Keinginan Schneider Cable end insulated, 1,5mm, medium size, black, 10 bags, NF - DZ5CE015DZ5CE015Harga Spesial Rp2.268 Harga Reguler Rp3.659Indent
- Tambahkan ke Daftar Keinginan Schneider Cable end insulated, 2,5mm, medium size, grey, 10 bags, NF - DZ5CE025DZ5CE025Harga Spesial Rp2.268 Harga Reguler Rp3.659Indent

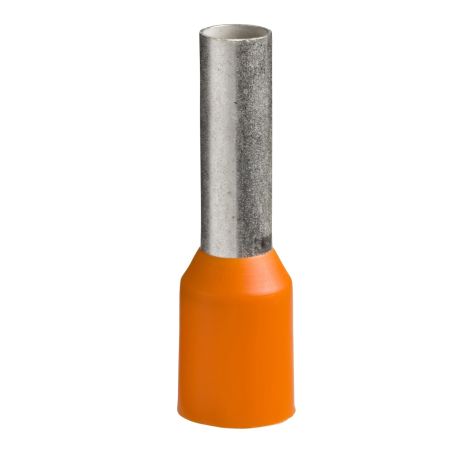

- Tambahkan ke Daftar Keinginan Schneider Cable end insulated, 4mm, medium size, orange, 10 bags, NF - DZ5CE042DZ5CE042Harga Spesial Rp2.268 Harga Reguler Rp3.659Out Of Stock
