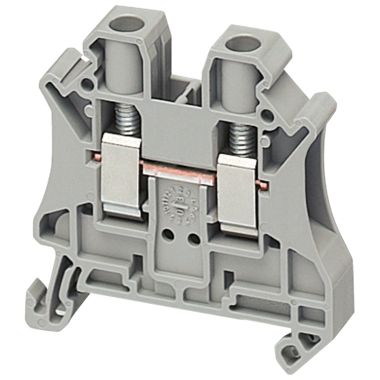

Linergy TR is terminal block for Linergy.
It belongs to linergy passthrough terminal block with 6 mm nominal cross section.
The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD.
The rated current is 41A conforming to EN/IEC 60947-7-1, 50A conforming to CSA/cURus and 40A conforming to ATEX Exe II Ex II 2 GD.
It has grey surface treatment.
Mounting by clip-on and sideways connection by single-level 1x1 screw terminals.
It could be connection and disconnection by screwdriver.
It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys.
Sold in lots of 50 units.
Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21.
Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
It is compliant with Green Premium (RoHS/REACH).
| Range | Terminal Block |
|---|---|
| Product/Component Type | Panel Industri & Kontrol Temperatur |
